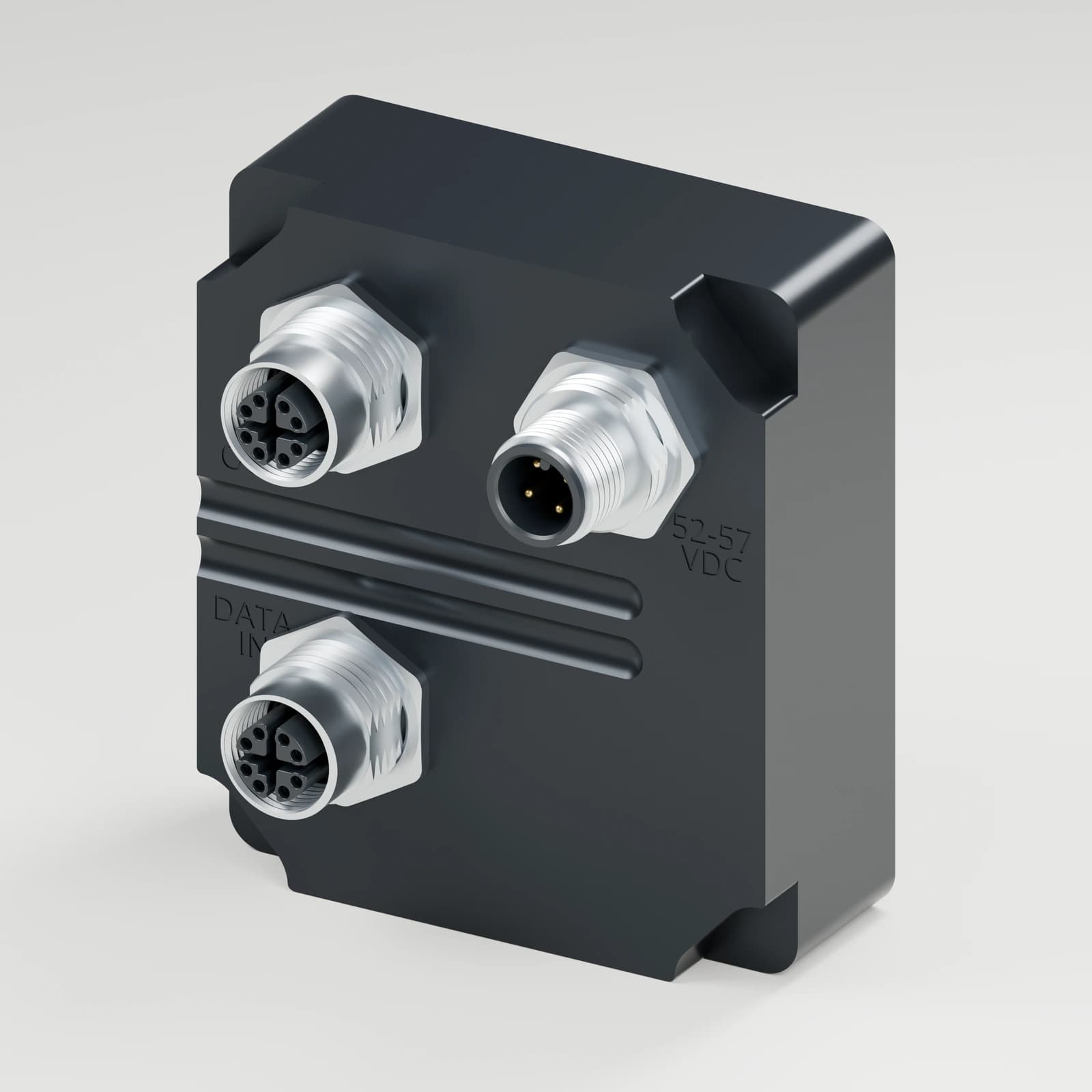

Injector — CAD visualization
1 / 3
Networking
R1 Gigabit PoE++ Injector with M12 Connectors
Combine Ethernet data and DC power on a single cable using M12 connections.
Pricing on inquiry
You’ll send your contact details with your cart. Product details and pricing are confirmed by our team.
Product details
The R1 Gigabit PoE++ Injector combines Ethernet data and DC power on a single cable for a connected powered device. M12 connections provide separate Ethernet input, data-plus-power output and DC power input. Use it to connect PoE-powered equipment in robotics, machine networks and automation systems.
$279 USD per injector. 20+ units on hand. Lead time: 4 weeks.
| Ethernet speed | 10/100/1000BASE-T |
|---|---|
| PoE standards | IEEE 802.3af / 802.3at / 802.3bt |
| PoE types and classes | Types 1–4; classes 0–8 |
| Two-pair PoE output | Up to 47.5 W |
| Four-pair PoE output | Up to 95 W |
| PoE detection | Automatic |
| Ethernet input | One female X-coded M12 connector |
|---|---|
| Data and PoE output | One female X-coded M12 connector |
| DC power input | 52–57 V DC; one male A-coded M12 connector |
| Power architecture | Single DC input |
| Reverse polarity protection | Yes |
| Ethernet cable | Cat6 or better; up to 100 m |
| Enclosure | Black anodized aluminum |
|---|---|
| Approximate dimensions | 73.15 × 63.50 × 40.66 mm (CAD envelope) |
| Operating temperature | −40 to +85 °C |
